How Is Lace Cast Into Metal?


One of the questions I get asked most often about my work is, "How is it made?  It's lace...but it's metal?  How do you even do that?"  Well, wonder no more, because here's a step-by-step explanation of my process!

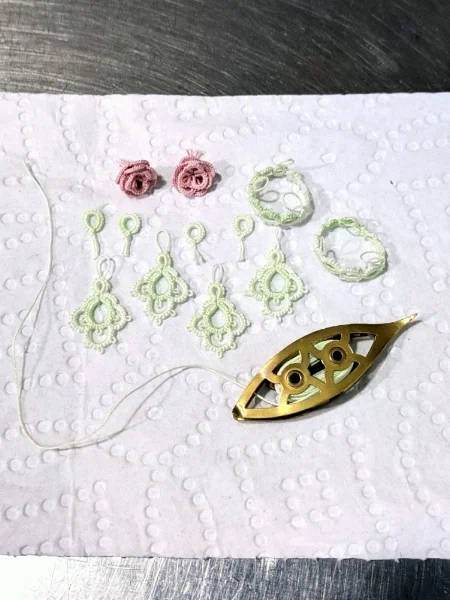

The pieces begin—like so much lace—with plain cotton thread.




The motifs are then soaked in wax.  This both stiffens the lace and makes it non-porous.

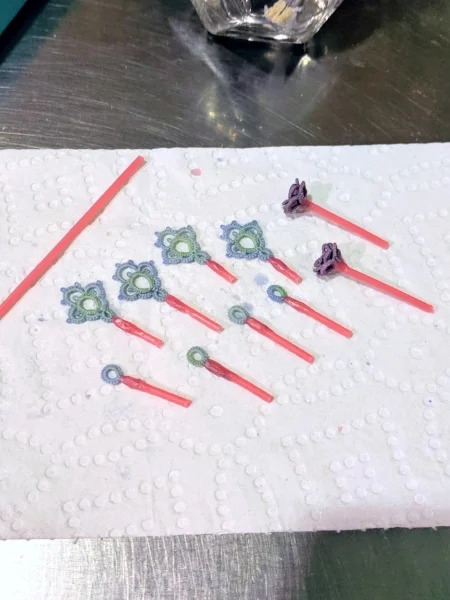

From there, sprue waxes are attached...

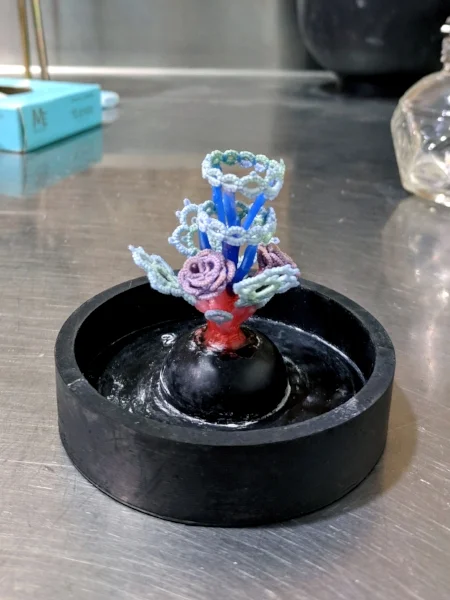

...and the pieces are arranged in a tree and attached to a rubber base.  A steel canister is then placed around the pieces.




After that, the mold-making material (called investment) is mixed...




...the air bubbles are vacuumed out...




...and the investment is poured into the canister, around the pieces.

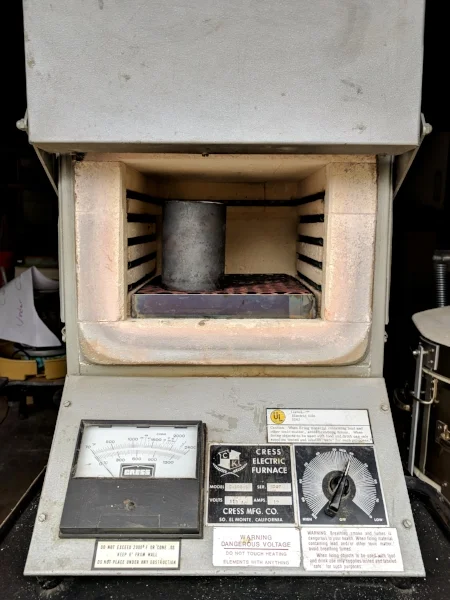

After the investment has set, the rubber bottom is removed, and the canister is placed in a kiln, where the temperature rises to 1250°F (almost 700°C) over the course of 7-8 hours.  This melts out the wax and destroys the lace, leaving a hollow that the molten metal can later fill.

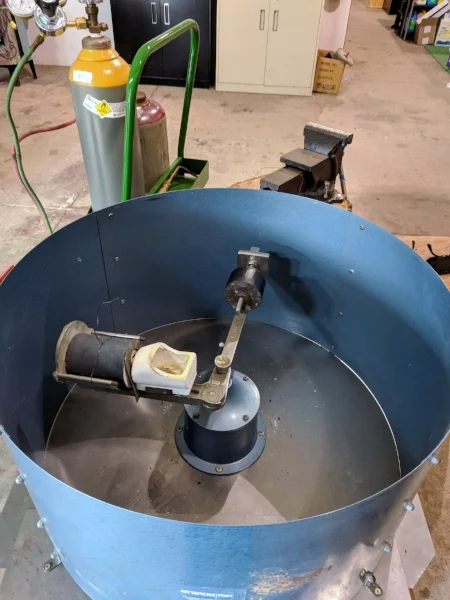

Once the burn-out cycle is complete, the (still hot) canister is loaded into a centrifugal casting machine, and the machine (being spring-loaded) is wound up.




The metal is placed in a ceramic crucible and melted with a torch...




...then the machine arm is released, and the centrifugal force pushes the molten metal into the mold.

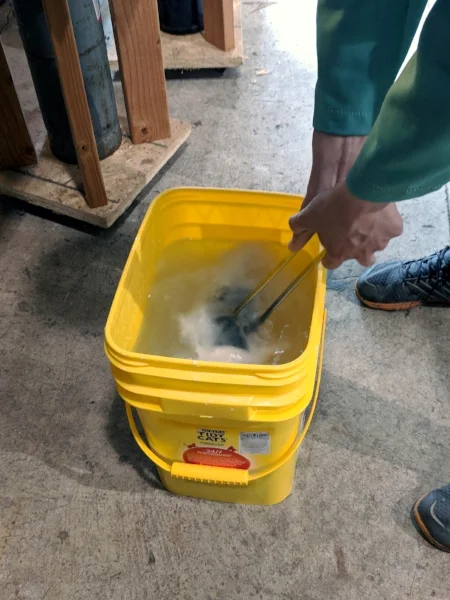

Once the machine has come to a stop, the canister is removed and quenched in water.  This breaks/dissolves the investment mold...




...and the casting can be retrieved.

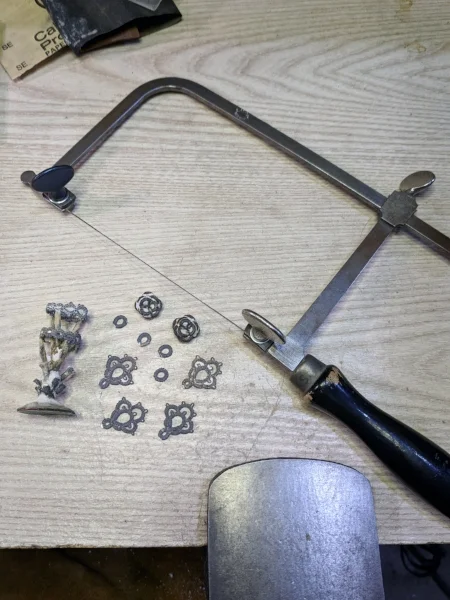

Now it's time for bench work!  The castings are cut off the sprues with a jeweler's saw...

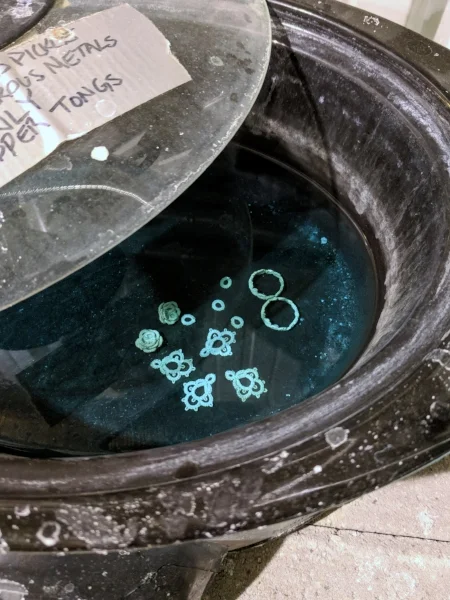

...after which the rest of the investment is scrubbed off, and the pieces are put in a mild acid bath (called a pickle) to remove oxidation.

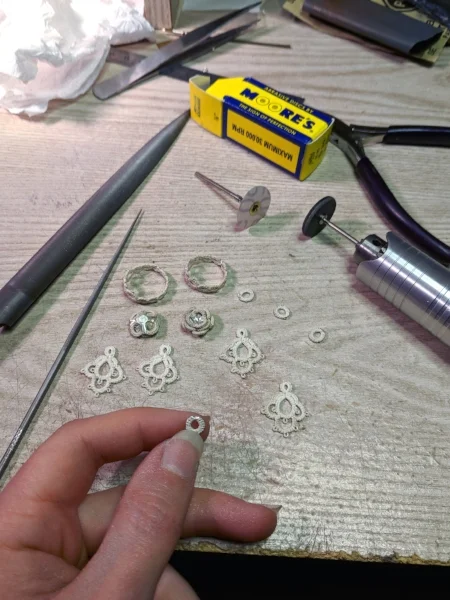

From there, the rough edges are filed and sanded...

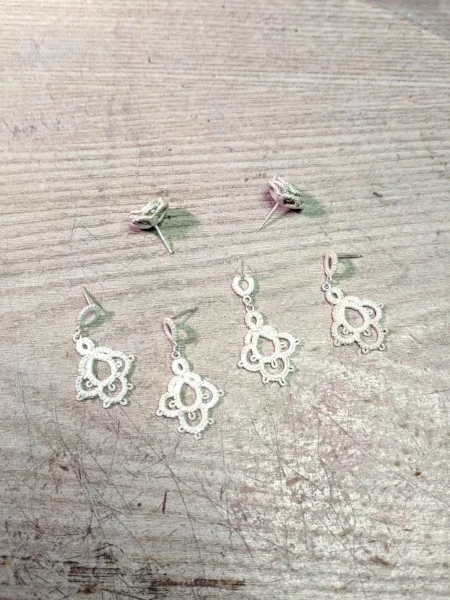

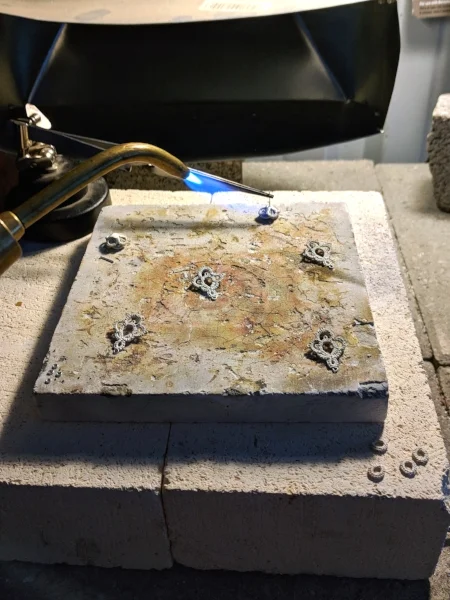

...and earring posts, jump rings, and anything else are soldered on and assembled...




...turning the castings into functional pieces of jewelry.

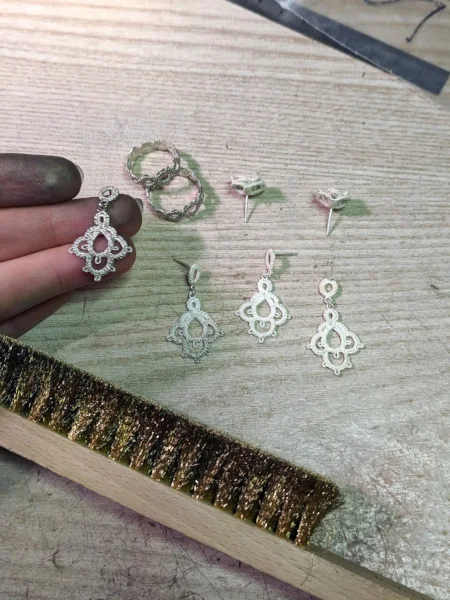

Now it's time for finishing!  The pieces are burnished with a brass brush to make them sparkle...




...rolled in a tumbler to give them just the right amount of shine...




...and then given a final cleaning with ammonia to brighten them up.




Ta da!
